Technoport entrance systems from Wanzl really have something to offer – for the safety of your customers, and also for your own. A future-proof investment that will pay for itself in a very short time.

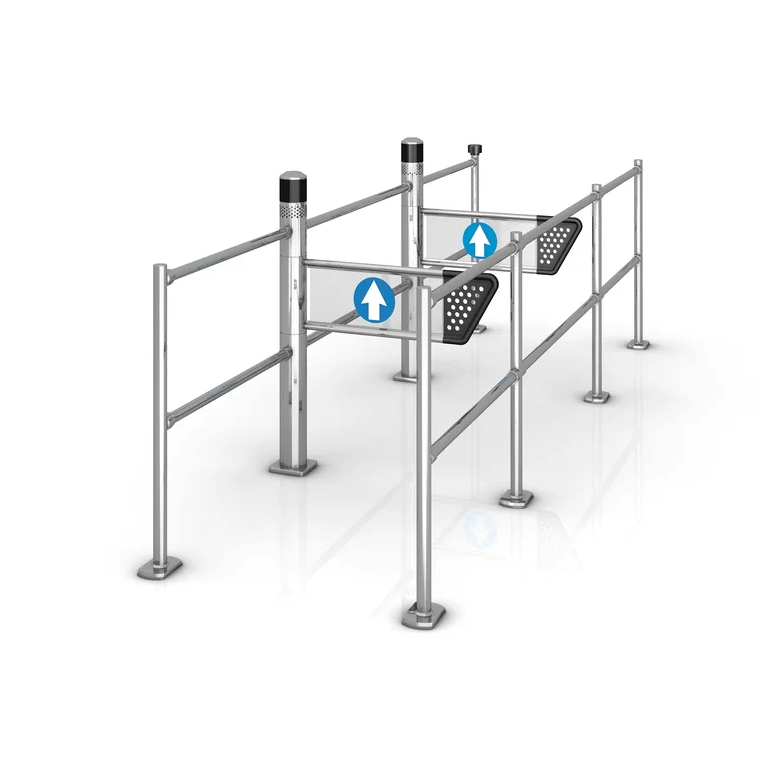

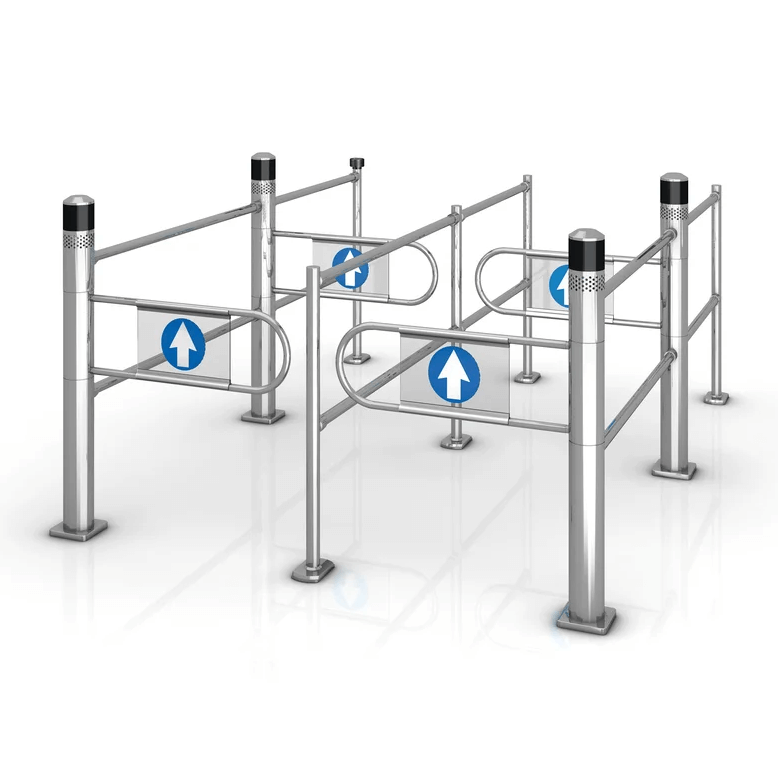

Technoport - Wanzl
Guidelines & Security - IDS

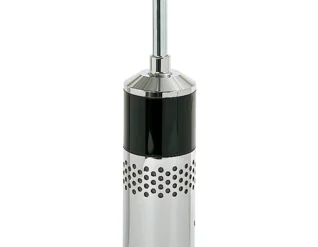

Power Supply From Ceiling
230 V feed line and signal line from the ceiling mean that no structural work is necessary and simplify alterations

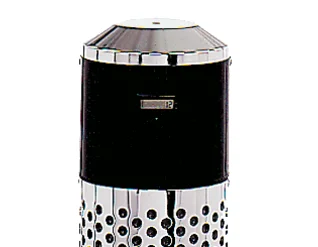

Digital Counter
Counts customers using direction-sensing radar, output via digital display. Factory-set radar sensitivity enables the highest possible count accuracy.
Control panel with counter
Passage release for one person using a button, set to permanently open with switch and passage of staff in the opposite direction using a button.
Radio remote control
Remote control of one or more systems. Release in the direction of passage, exit direction or set to permanently open.
Design
Upright and Classic swivel arms made of steel tubing, high-gloss chrome-plated or coloured plastic powder coating. Pivot mechanism made of metal, fully integrated in the upright – provides a particularly high level of injury protection. Info sign made of white plastic or transparent acrylic glass, printed on both sides.
Function
Technoport entrance systems are equipped with a radar control as a standard feature. In the case of two-way systems, the second system is controlled by an infrared light barrier. The radar control saves space, as in most cases it is possible to dispense with an entry section.
Swivel Arm Classic
Swivel Arm Promotion
Anti-panic Features
In an emergency, the barrier can be opened in both directions. An acoustic alarm indicates that the barrier has been opened and protects against misuse. The automatic barrier reset ensures that the system is ready for operation again.
Adjustable Radar Beam
Flexible adaptation of the radar beam for optimum customer registration and to suit the space available from 0.5 up to a maximum of 2.5 m.
