Maximum Personalisation In The Simplicity Of Shapes

The checkout counters of the QUADRA line, with their simple and essential design, are made of quality materials, guaranteeing a robust and durable product over time. The wide range of models and accessories available ensures high performance and maximum utilisation of work space, meeting the efficiency requirements of operators and practicality of use for end customers.

The checkout counters with their simple and linear shapes, form a welcoming and functional checkout barrier. Discover the wide range of models available, designed to meet the needs of every type of sales outlet.

Features

Essential Design, Durability, High Perfomance

The QUADRA line has structural, technical and aesthetic features with attention to every detail, making each individual checkout counter a distinctive furniture element for every type of point of sale.



Upper structure of anodized aluminium and painted steel, with polypropylene connection corners, protected laterally and at the rear by a black rigid PVC bumper profile.





Supporting lower structure made of steel, square in shape, with front and longitudinal housing that can be painted in the colours of your choice. Legs with setup for floor mounting.





Front module with black antistatic PVC and polyester double ply belt. High power drive motor, oil-cooled, soft start optional. Double sensor photocells for added safety.





Centre module made of brushed AISI 430 steel or alternatively rigid AISI 304, available in 350 mm with scanner setup or 550 mm with scanner setup and optional cash drawer.





Rear module with inclined bagging area made of brushed AISI 430 steel or alternatively AISI 304 hardened, with a square shape for maximum capacity.





Touch-type electronic control panel housed in an ergonomic position for managing all checkout counter functions.





Register shelf in black scratch-resistant melamine- faced wood with ABS perimeter profile, for operator service.

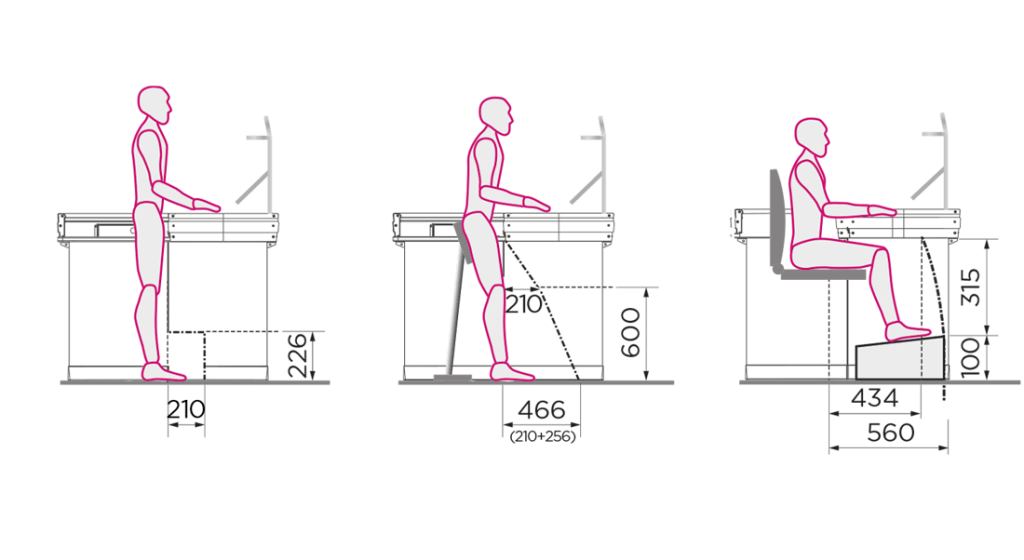

ERGONOMICS

Ergonomically correct posture

We design each checkout counter in full compliance with the ergonomics criteria of current standards, thanks to our collaboration with Ergocert, an internationally accredited body that certifies usability and user experience.

The careful design of spaces and the correct arrangement of equipment and accessories takes into account both the actions performed by the operator, from repetitive movements to weights lifted, and the position assumed during work, to ensure correct posture without risk to joints and muscles.

Models

The QUADRA line boasts a wide choice of models that differ in their functionality and applicability at the point of sale.

QUADRA NSV

​Checkout counter with motorized conveyor, suitable for scanner housing. Double two-customer bagging area, square in shape.​

QUADRA NSCV

Checkout counter with motorized belt, central module with scanner setup and drawer. Capacious two-customer bagging area with a square shape. Versatile model suitable for small, medium and large areas.​

QUADRA NSV BtB

The BtB model provides for the coupling of a R and L checkout counter from the rear side, offering a safe and shared work area and a spacious and comfortable double bagging area for customers. Central module with scanner predisposition.​

QUADRA NSCV BtB

​The BtB model provides for the coupling of a R and L checkout counter from the rear side, offering a safe and shared work area and a spacious and comfortable double bagging area for customers. Central module with scanner and drawer setup.​

QUADRA NSVD

Checkout counters mainly used in discount shops or as a complement to the checkout barrier, with a conveyor belt, scanner hole and bagging area facing customer.​

QUADRA NSCVD

Checkout counters mainly used in discount shops or to complement the checkout barrier, with conveyor belt, scanner hole and drawer, straight bagging area for one customer. The reduced width of this model is recommended for setting up small spaces.​

QUADRA TANDEM

The combination in TANDEM of two R and L checkout counters with a straight bagging area, placed side by side and staggered, is an excellent solution for maintaining maximum efficiency with a reduced footprint in width. The TANDEM model is applicable to any commercial surface and type of shop.​
