The JV17 single back panel can be mounted in a central or rear position, depending on the element, resulting in an increase in display area of up to 10 cm per shelf.
IMZ25 JV17 - Intrac
Supermarket Shelving - IDS

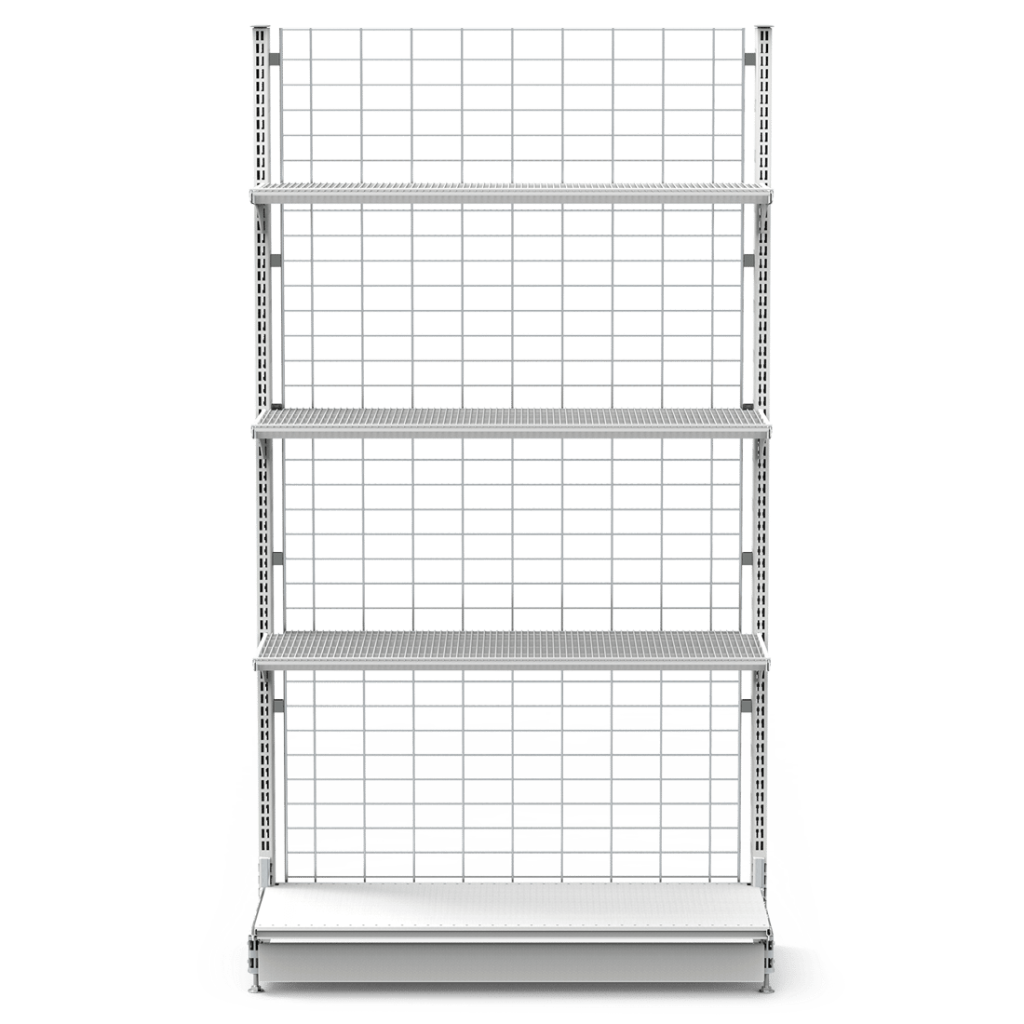

IMZ25 JV17 is the product variant that has the least impact on the interior of a shop,as its mesh backs and wire shelves allow for a high degree of shelf transparency. Displayed items are enhanced by light filtering through the furniture, and cleaning is facilitated, as dust does not settle as easily as on sheet metal components.
Structures, fittings, generic and specific accessories are common to the other variants, making the entire IMZ system complete in its offering. It maintains the modularity, flexibility and solidity of the structures with a lightweight design that makes the shelving elements almost completely disappear.
It is optimal for furnishing any type of store and for creating aesthetically appealing and identifying distribution formats for large retail chains.
In the IMZ25 JV17 system, a single, centrally positioned or set-back single back panel is used to maximise the depth of the system and to shorten assembly time, as only one component needs to be fitted. The type of interlocking on the side slots of the uprights and the insertion of the plastic anti-hook detail make the whole compact and resistant.
The configurations 4M and 4M Advanced can reach a net depth of 900 mm while maintaining the load capacity typical of these structures.
In the Discount configuration, the high performance that can be achieved in both gondola and wall-mounted versions is accompanied by the high visibility typical of this version, which makes the overall appearance attractive and functional.
Lightweight design configuration that enhances the displayed products by exploiting all the space required.
4M configuration with 30x30 mm front upright suitable for high capacities, solid and light at the same time.
Advanced 4M configuration with 30x30 mm back upright, light-weight appearance for high capacities and continuous facing.
Sturdy discount configuration with high visibility of displayed products.
The uprights, thanks to their internal slots, allow the attachment of back panels in a central or backward position, so that the space inside the upright can also be utilized, and thanks to their 25 mm pitch, they allow for a meticulous adjustment of the components to minimise the gaps between the shelves. The result is a more pleasing display without penalising strength and capacity. The range has various heights to choose from up to a maximum limit that would compromise the load capacity.
Variable depth from 250 mm to 800 mm at 50 mm intervals to cover all space requirements within a shop.
Variable depth from 250 mm to 800 mm at 50 mm intervals to facilitate floor cleaning.
The range of uprights includes depths of 30, 70 and 100 mm. The heights range from 1016 mm to 2416 mm at 100 mm intervals.
The transparency of the single mesh back panel emphasises the items on display, with the added advantage of increased display area due to its installation in the slots inside the upright.
The IMZ25 JV17 back panel is a single back panel, fully welded including the attachment brackets that fit inside the side slots of the uprights.
Composition for 100 mm uprights with JV17 mesh back panel in central position and notched shelves with an increase in display space of 5 cm.
Wall and header composition with 100 mm upright with JV17 mesh back panel set back and shelves with extension with an increase in display space of up to 10 cm.
The shelves of the IMZ25 JV17 system fill the space left vacant by the use of single double-sided back panels, offering a wider display surfacefor the products on sale. The range includes different types of shelves with generic or dedicated accessories, necessary to meet all types of requirements.
The depth of 25 mm sheet metal shelves varies from 250 mm to 800 mm at 50 mm intervals.
The depth of the 17-mm sheet metal shelves ranges from 250 mm to 550 mm in 50-mm intervals.
The depth of the mm gridded shelves ranges from 300 mm to 600 mm at 50 mm intervals.
Depth of framed glass shelves mm varies from 300 mm to 600 mm at 100 mm intervals.
Depth of flush shelves with rod mm varies from 300 mm to 600 mm at 50 mm intervals.
The depth of wire shelves without rod mm varies from 300 mm to 600 mm at 50 mm intervals.
The lighting system of the IMZ25 JV17 retains part of the solutions of the standard version. The lights are LEDs with a 24 V output and an external power supply. Connection to the ballast is by means of a magnetic track that can be shortened to size on site and positioned on the free side of the upright. A slot is provided in the cut-out or extension for the passage of the track. The ceiling lights engage at the shelf to create ambient focus and attract the interest of customers.
LED lighting with magnets or supports for attachment to any type of shelf.
Electrified magnetic track required for illuminating shelves with low-energy LED lights.
Sheet metal shelf with groove for housing the electrified track.
Curved ceiling light with upward light for illuminating communication panels or downward light for illuminating displayed products.
Ceiling light with natural light that highlights the entire element on which it is positioned.
Framed glass shelves with low-energy LED lights and an upper LED ceiling light that highlights the entire element.
