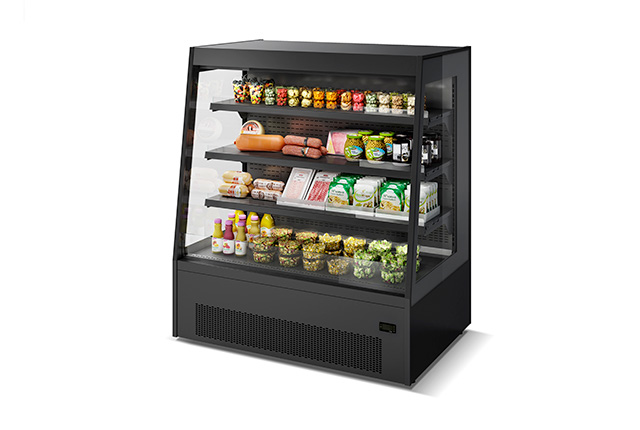

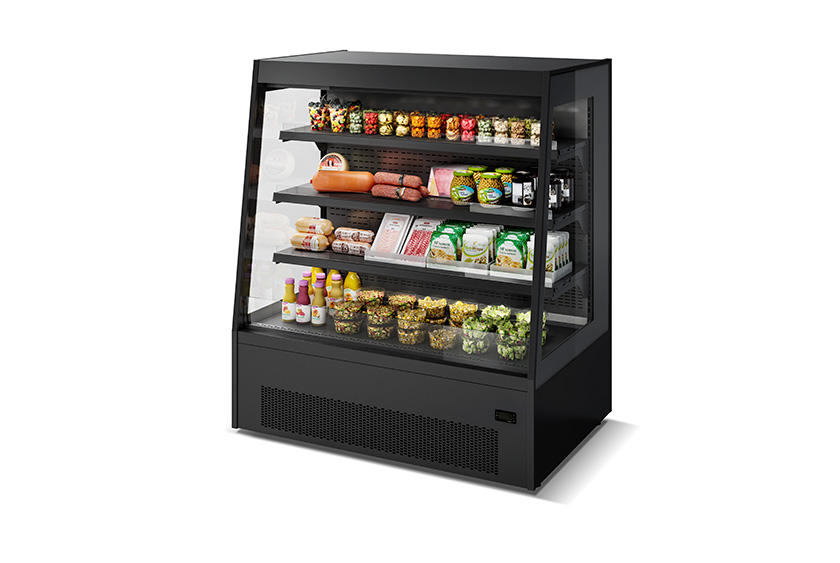

Galaxy is ISA’s plug-in multideck, which stands out for its large and attractive display surface area, as well as for its wide range of models.
Available in two different heights and four lengths, Galaxy is multiplexable and it can be open-front or closed by three different door systems. Galaxy fits with elegance in all sales areas, from proximity stores to hypermarkets.
H 205
P 88
L 94 • 125 • 188 • 250
H 205
P 88
L 94 • 125 • 188 • 250
H 205
P 88
L 94 • 125 • 188 • 250
H 205
P 88
L 94 • 125 • 188
H 151
P 88
L 94 • 125 • 188
H 151
P 88
L 94 • 125 • 188
H 205
P 84
L 1P • 2P • 3P
H 238
P 88
L 125 • 188 • 250
The refrigeration system is a jewel of high technology and sustainability: natural refrigerant R290, hermetic compressor and automatic defrosting system. Less vibration and noise (-30% compared to models with models with R452A), greater energy efficiency (up to 10% saving) and maximum environmental sustainability as it is fully compatible with the European F-GAS regulation. Digital display is prepared for ISA Connect. Galaxy can also be supplied with remote cooling units.
Natural refrigerant R290 (hydrocarbon) protects the environment by reducing maintenance intervals; electronically controlled fans and expansion valves reduce the energy consumption and help ensure a constant product temperature. Cyclopentane used as expansion agent of the insulating material also provides 30% higher insulation value compared with traditional insulation.
Galaxy was designed to maximize display space thanks to the 450 mm deep shelves (400 mm for the top shelf) and to the low cabinet front that guarantees a top-class presentation of goods.
The LED lighting (standard on the canopy and optional on the shelves) is available in 4 shades of color (3000K, 4000K, 5700K and pink) enhances the product presentation and allows Galaxy to fit into any type of environment.

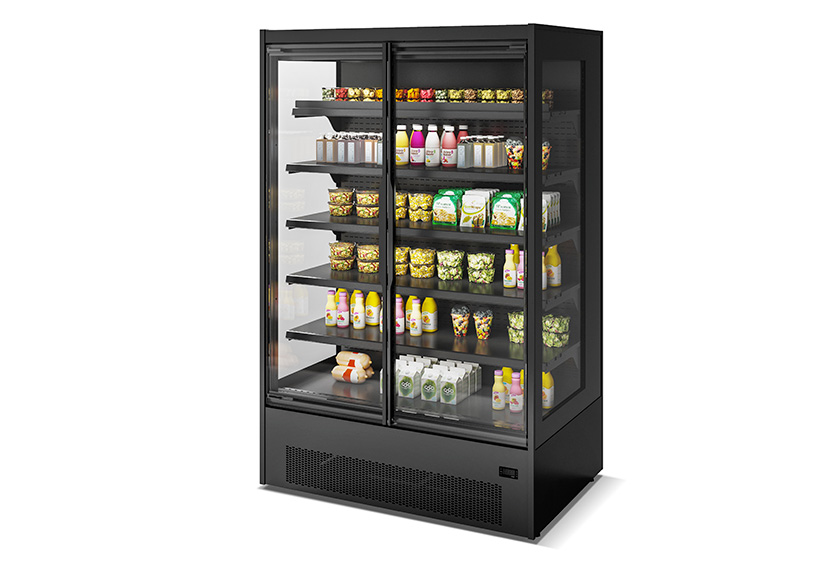

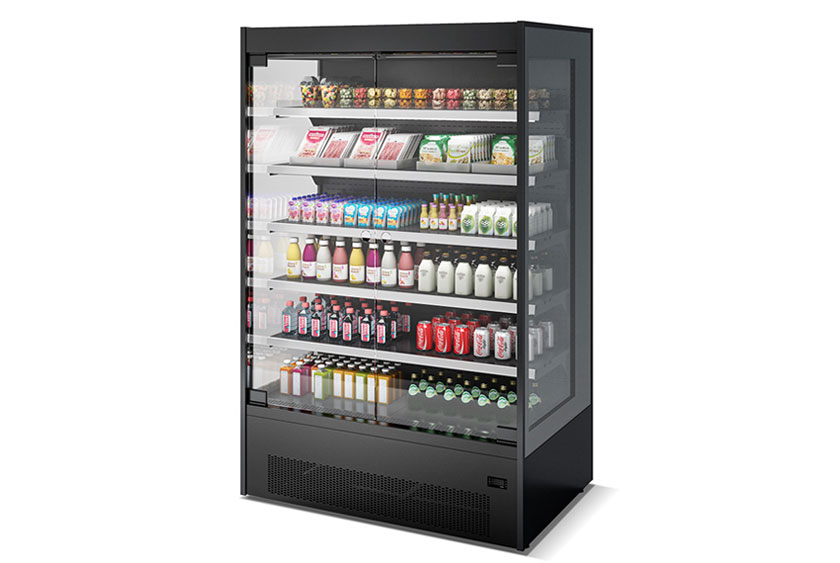

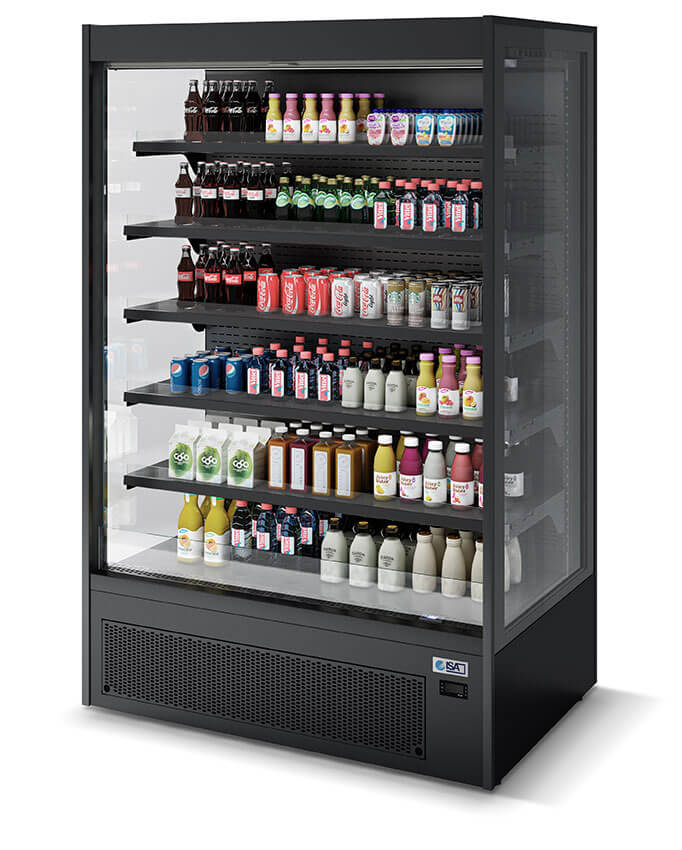

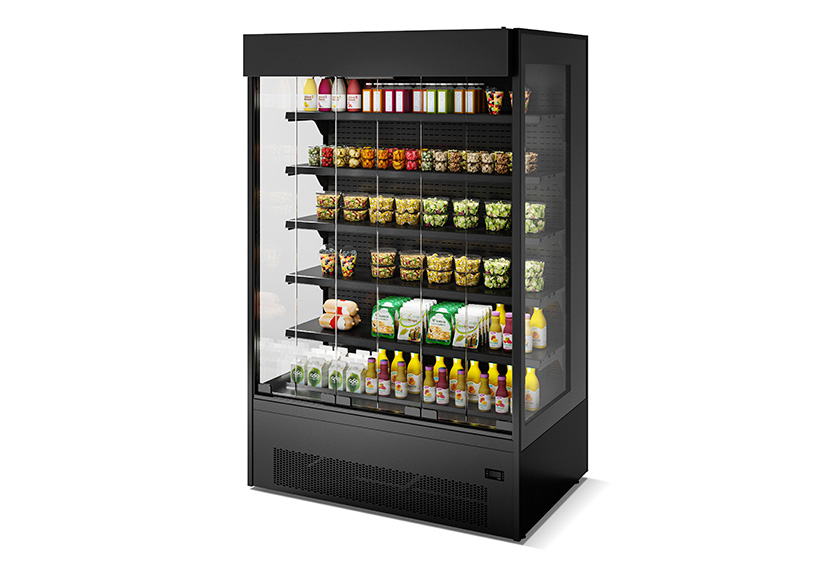

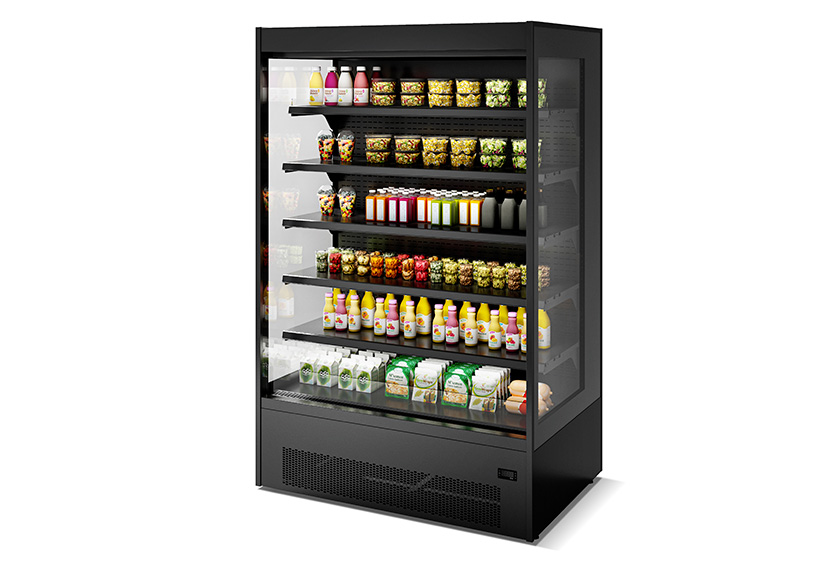

From impulse open-front sales to maximum energy savings with double-glazed doors, via the Smartflex non-door system. The Galaxy TN range covers an extraordinary range of applications.
The inner surfaces can be finished with a selection of RAL colors or satin stainless steel. Polished stainless steel is available as an option for exterior surfaces. Side panels can be panoramic with safety glass, Blind or mirrored. Glass side panels have a surrounding anthracite colored screen frame, blind side panels are supplied in any RAL color choice. Different LED lighting colors chosen, while shelves are available in stainless steel or glass.
Create your own Galaxy mood. The external surfaces of Galaxy can be coated with custom materials such as laminates and films. End panels, canopy and lower casing (in the version with Easy Clean grille, see also pag.24) can be covered in laminate or films. The perimeter frame of the end panels and the removable grille are in painted metal. Costs and delivery times on request.

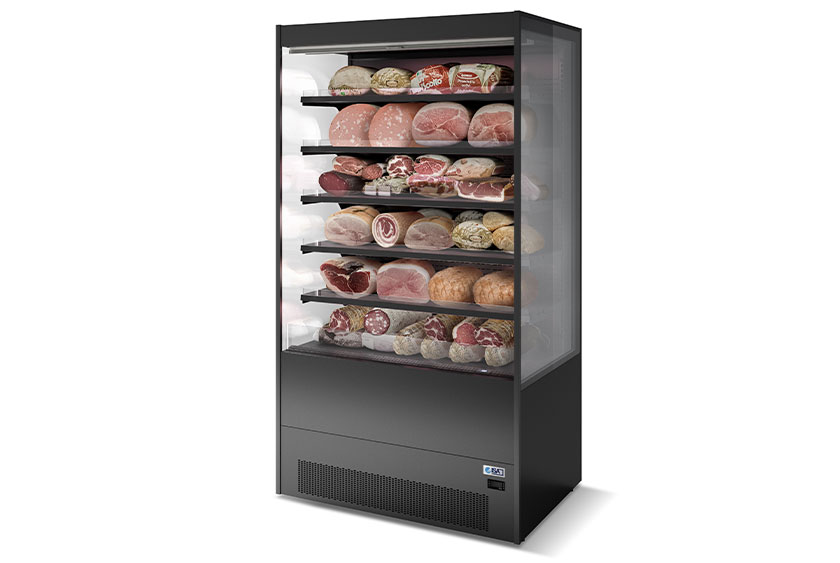

The versatility of Galaxy TN is also highlighted by the wide choice of internal fittings. Hook bar for hooks and blister packs (M1 on SGD, GD or SFX versions; class H for Open version with hook bar), angled mirror for fruit and vegetables. Wine shelves, gourmet shelves and cold cuts shelves with hooks make up the gourmet fittings.
The customization of internal and external finishes complete the versatility of Galaxy and make it the ideal solution for any type of store.

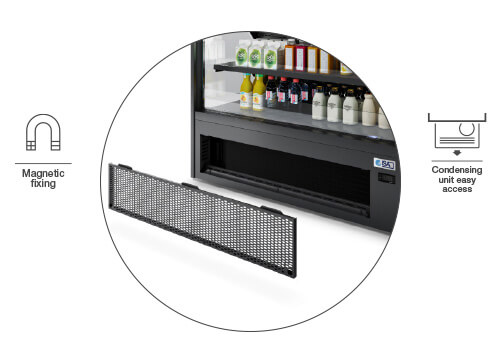

The fully removable control panel and pullout condensing units allow easy access to the technical compartment during maintenance. The Easy Clean grille (optional) is easily removable thanks to a magnetic closing mechanism, to allow the cleaning of the condenser by the end user. Keeping the condenser clean optimizes the performance of the cabinet and reduces energy consumption.
From impulse open-front sales to maximum energy savings with double-glazed doors, via the Smartflex non-door system. The Galaxy TN range covers an extraordinary range of applications.
A refrigerated multideck with best-in-class display capacity. Products stored, displayed and enhancedb at their best. A store furnished in total freedom, without restrictions dictated by the footprint of refrigerated equipment. This is Galaxy built-in, the first built-in multiplexable plug-in multideck.
The design of Galaxy built-in allows the installation in line with the wall paneling. The “easy clean” grid supplied with the unfinished counter can be painted on request or finshed on site. The control unit control unit can be easily reached by removing the magnetic grid (fixing brackets included).

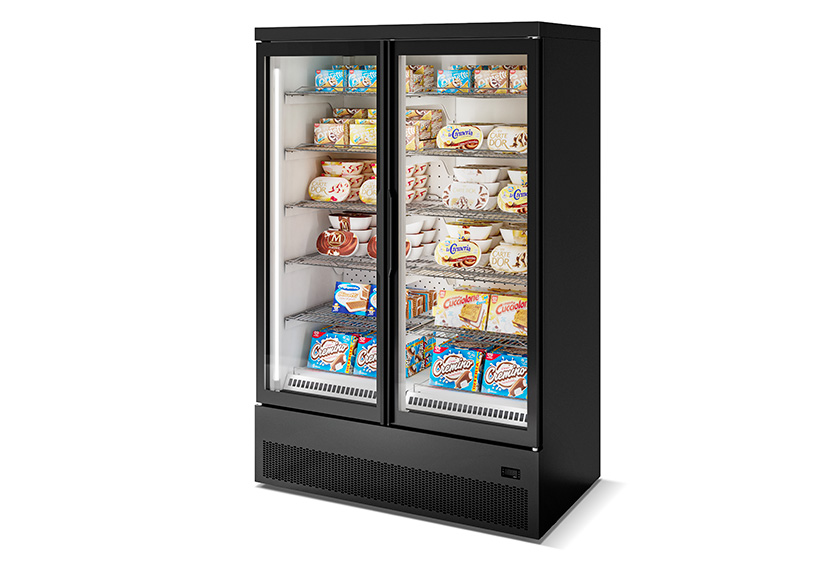

Galaxy TB aligns perfectly with Galaxy TN to seamlessly furnish entire stores. From convenience stores to small supermarkets, with easy installation, exceptional performance and energy savings.
Available in three models: one, two or three triple-glazed doors with automatic closure.
